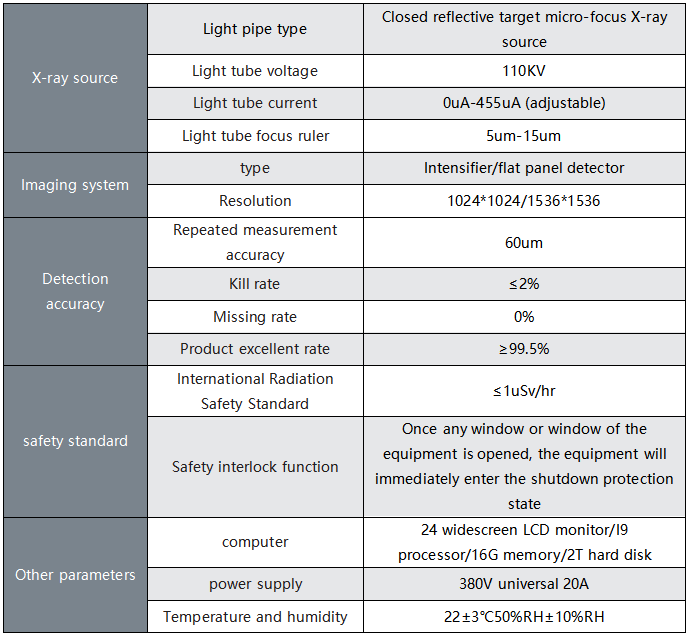

Technical parameter

Scope of application

It is used to detect the distance between the square aluminum shell lithium battery and the square steel shell lithium battery shell, and automatically analyze the good and bad products.

Features

1. The software automatically judges good and defective products, and automatically sorts defective products;

2. The software automatically determines, reduces human error, and improves product consistency and quality assurance;

3. It has the function of scanning codes, recording battery codes, tracking battery test results one by one and uploading to the terminal server;

4. The software is independently developed and can be customized according to the specific needs of customers;

5. The equipment inlet and outlet can be connected to the production line;

6. Quick and easy to change and debug, and quick to change and debug different types of products;

7. The equipment has a safety interlock function. All doors and windows are equipped with high-sensitivity photoelectric switches. Once the doors and windows are opened, the X-ray tube will be automatically powered off immediately to prevent misoperation by personnel.

Imaging effect
