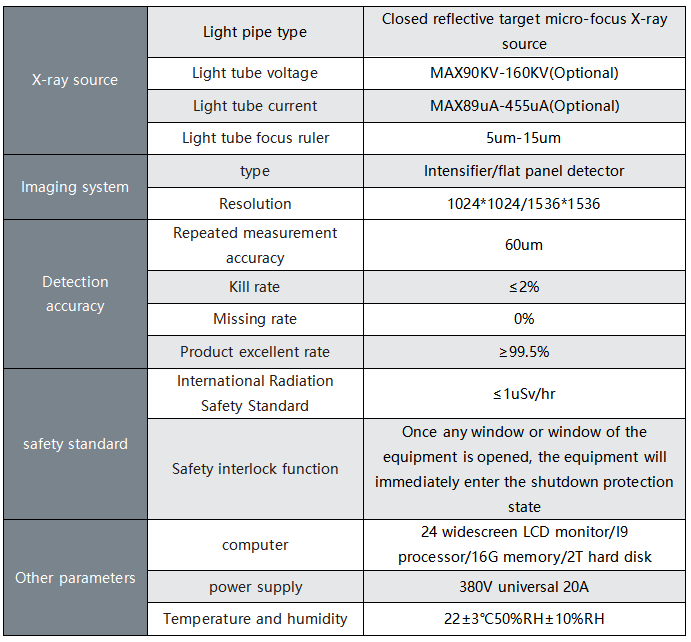

Technical parameter

Scope of application

It is used to detect the state of the positive and negative pole pieces inside the laminated technology battery, the number of pole pieces, and automatically analyze good and bad products.

Features

1. The software automatically judges good and defective products, and automatically sorts defective products;

2. The software automatically determines, reduces human error, and improves product consistency and quality assurance;

3. It has the function of scanning codes, recording battery codes, tracking battery test results one by one and uploading to the terminal server;

4. The interface displays the working status in real time and monitors the equipment in real time;

5. When the same battery detects multiple parts, the data and pictures of multiple parts can be displayed at the same time, which is convenient for observation;

6. The software is independently developed and can be customized according to the specific needs of customers;

7. The equipment inlet and outlet can be connected to the production line;

8. The equipment has a safety interlock function. All doors and windows are equipped with high-sensitivity photoelectric switches. Once the doors and windows are opened, the X-ray tube will be automatically powered off to prevent misoperation by personnel.

Imaging effect
