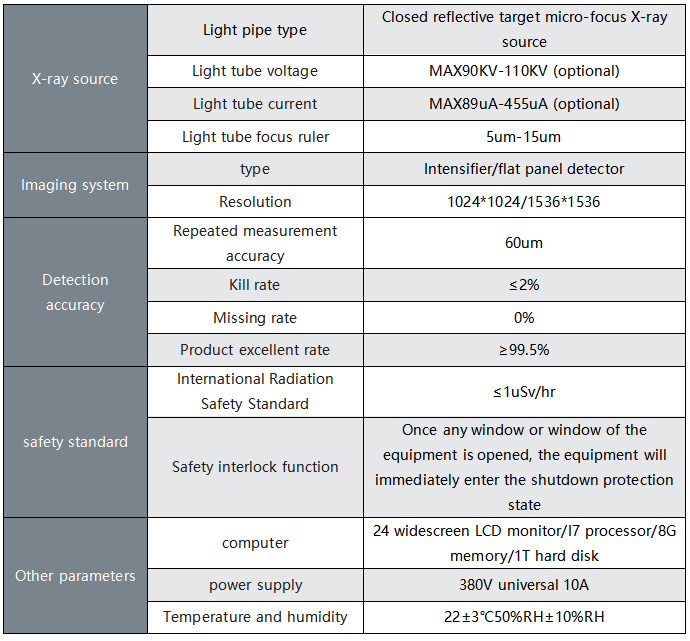

Technical parameter

Scope of application

It is used to detect the alignment of wound batteries, measure the length of each layer of the negative electrode beyond the positive electrode on the diagonal or four corners, and obtain various values.

Features

1. High detection efficiency, built-in two sets of manipulators on-line detection and analysis, realizing high-speed on-line detection;

2. The software automatically measures the alignment of the positive and negative plates of the battery, and counts the maximum, minimum, average, positive and negative differences;

3. The software automatically judges good and defective products, and automatically sorts defective products;

4. The software automatically determines, reduces human error, and improves product consistency and quality assurance;

5. It has the function of scanning code, recording battery code, tracking battery test results one by one and uploading to the terminal server;

6. The software is independently developed and can be customized according to the specific needs of customers;

7. The equipment inlet and outlet can be connected to the production line;

8. Quick and easy to change the type and debug, and the different types of products are quick and easy to change and debug;

9. The equipment has a safety interlock function. All doors and windows are equipped with high-sensitivity photoelectric switches. Once the doors and windows are opened, the X-ray tube will automatically cut off power to prevent misoperation by personnel.

Imaging effect
